日本帕斯卡PASCAL氮气弹簧DNA750-160
品牌：日本PASCAL帕斯卡
规格型号：DNA750-160
性能简述：氮气弹簧DNA750-160 日本帕斯卡PASCAL株式会社原装进口 model DNA 长行程型 外形 mm ø38 ø45 ø50 ø75 ø95 ø120 ø150 初始荷重 kN 2.65 4.71 7.36 15.3 29.5 49.8 75.4 行程 mm 10 ～ 300 总高 mm 100 ～ 755 DNA系列
咨询热线：
15818598199
详细介绍
氮气弹簧DNA750-160 日本帕斯卡PASCAL株式会社原装进口
DNA系列型号表示
规格参数
● 初始荷重及最大荷重是指气体充填压力为 15 MPa ( 20 ℃ ) 时的荷重。

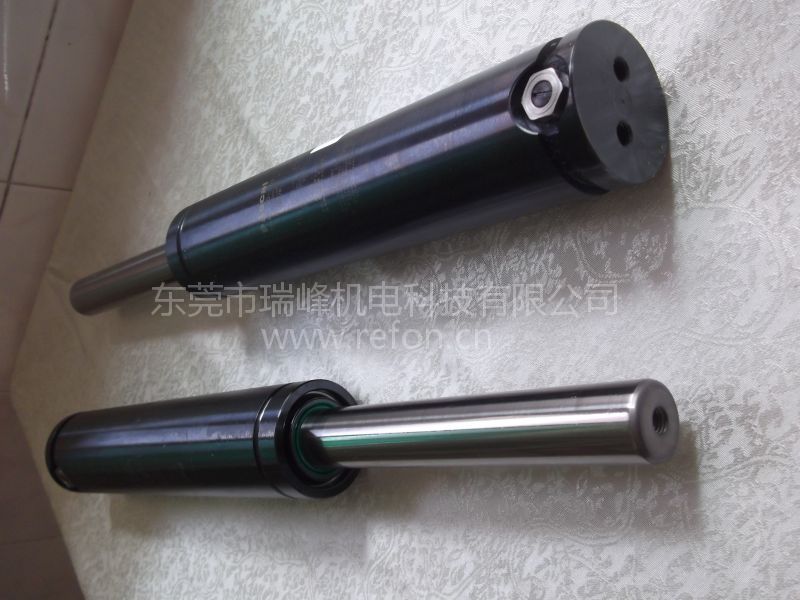

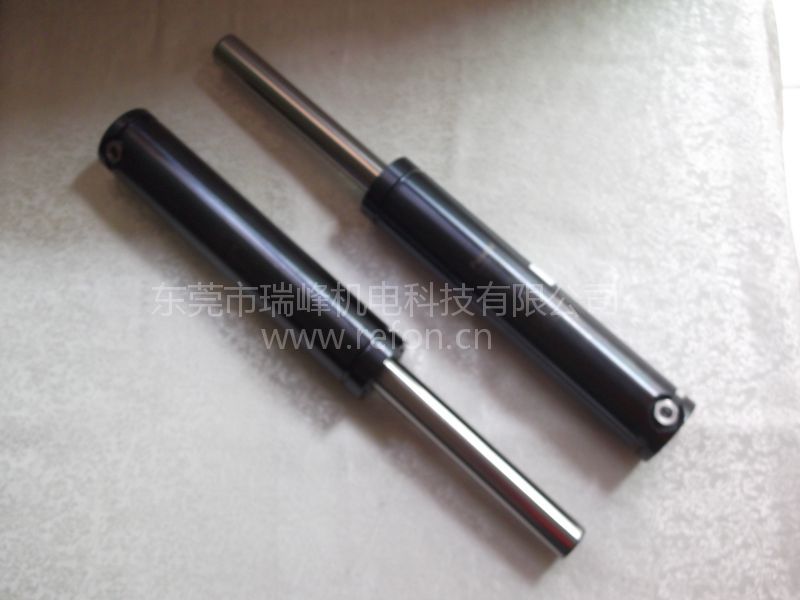

产品实拍图
| model DNA 长行程型 | |||||||
| 外形 mm | ø38 | ø45 | ø50 | ø75 | ø95 | ø120 | ø150 |
| 初始荷重 kN | 2.65 | 4.71 | 7.36 | 15.3 | 29.5 | 49.8 | 75.4 |
| 行程 mm | 10 ～ 300 | ||||||
| 总高 mm | 100 ～ 755 | ||||||
规格参数
|
型 号 |
行程 S mm |
初始荷重 kN | 最大荷重 kN | 压缩比 |
质量 kg |
L mm |
H mm |
外形尺寸 mm |
||||||
| 25 | 25 | 2.65 | 3.52 | 1.33 | 0.5 | 100 | 75 | K | = | 15 | P | = | M6 深 11 | |
|
DNA0250- |
50 63.5 80 |
50 63.5 80 |
2.65 2.65 2.65 | 3.53 3.53 3.53 |
1.33 1.33 1.33 |
0.6 0.7 0.7 |
150 177 210 |
100 113 .5 130 | D B N E |
= = = = |
38 33 2 4 |
T J Z | = = = |
10.5 1 12.5 |
| 100 | 100 | 2.65 | 3.53 | 1.33 | 0.8 | 250 | 150 | F | = | 4 | ||||
| 25 | 25 | 4.71 | 6.23 | 1.32 | 1.1 | 135 | 110 | K | = | 20 | P | = | M8 深 8 | |
|
DNA0500- |
50 63.5 80 |
50 63.5 80 |
4.71 4.71 4.71 |
6.54 6.62 6.69 |
1.39 1.41 1.42 |
1.2 1.4 1.5 |
185 212 245 |
135 148 .5 165 | D B N E |
= = = = |
45 40 2 4 |
T J Z | = = = |
15.5 1 16.5 |
| 160 | 160 | 4.71 | 6.82 | 1.45 | 2.0 | 405 | 245 | F | = | 4 | ||||
| K | = | 25 | P | = | M8 深 13 | |||||||||
| 160 | 160 | 7.36 | 11.7 | 1.59 | 2.7 | 415 | 255 | D | = | 50 | T | = | 12.5 | |
| DNA0750- |
200 250 |
200 250 |
7.36 7.36 |
11.8 11.8 |
1.60 1.61 |
3.1 3.5 |
495 595 |
295 345 |
B N |
= = |
43 3 |
J Z |
= = |
2 17.5 |
| 300 | 300 | 7.36 | 11.9 | 1.61 | 4.0 | 695 | 395 |
E F |
= = |
8 7 |
||||
|
DNA1500- |
160 200 |
160 200 |
15.3 15.3 |
23.1 23.2 |
1.51 1.52 |
6.4 7.2 |
430 510 |
270 310 |
K D B N E F | = = = = = = |
36 75 67 3 8 7 |
P T J Z C U M | = = = = = = = |
M8 深 13 12 2.5 21 28.3 40 M8 深 15 |
|
DNA3000- |
160 200 |
160 200 |
29.5 29.5 |
48.2 49.0 |
1.64 1.66 |
11.1 12.6 |
440 520 |
280 320 |
K D B N E F | = = = = = = |
50 95 87 3 8 7 |
P T J Z C U M |
= = = = = = = |
M8 深 13 12 2.5 24 42.4 60 M8 深 13 |
| 10 | 10 | 49.8 | 54.8 | 1.10 | 9.8 | 160 | 150 | |||||||
| 25 | 25 | 49.8 | 60.5 | 1.22 | 10.7 | 190 | 165 | |||||||
|
38.1 50 63.5 |
38.1 50 63.5 |
49.8 49.8 49.8 |
64.3 67.1 69.6 |
1.29 1.35 1.40 |
11.5 12.2 13.0 |
216 .2 240 267 | 178 .1 190 203 .5 |
K D |
= = |
65 120 |
P T |
= = |
M8 深 13 12 |
|
| DNA5000- |
80 100 |
80 100 |
49.8 49.8 |
72.2 74.6 |
1.45 1.50 |
14.0 15.2 |
300 340 |
220 240 |
B N |
= = |
112 3 |
J Z |
= = |
2.5 25.5 |
| 125 | 125 | 49.8 | 76.9 | 1.55 | 16.7 | 390 | 265 | E | = | 8 | C | = | 56.6 | |
| 160 | 160 | 49.8 | 79.4 | 1.60 | 18.9 | 460 | 300 | F | = | 7 | U | = | 80 | |
| 200 | 200 | 49.8 | 81.4 | 1.64 | 21.3 | 540 | 340 | M | = | M10 深 15 | ||||
| 250 | 250 | 49.8 | 83.3 | 1.67 | 24.2 | 640 | 390 | |||||||
| 300 | 300 | 49.8 | 84.7 | 1.70 | 27.2 | 740 | 440 | |||||||
| 25 | 25 | 75 . 4 | 100 . 4 | 1 . 33 | 20 . 5 | 205 | 180 | |||||||
| 38.1 | 38.1 | 75.4 | 106 .7 | 1.42 | 21.8 | 231 .2 | 193 .1 | |||||||
| 50 | 50 | 75 . 4 | 110 . 8 | 1 . 47 | 22 . 8 | 255 | 205 | K | = | 80 | P | = | M8 深 13 | |
| 63.5 | 63.5 | 75.4 | 114 .2 | 1.51 | 24.0 | 282 | 218 .5 | D | = | 150 | T | = | 12 | |
| 80 | 80 | 75 . 4 | 117 . 2 | 1 . 56 | 25 . 4 | 315 | 235 | B | = | 141 | J | = | 2.5 | |
| DNA7500- | 100 | 100 | 75 . 4 | 120 . 0 | 1 . 59 | 27 . 3 | 355 | 255 | N | = | 3 | Z | = | 27.5 |
| 125 | 125 | 75 . 4 | 122 . 4 | 1 . 62 | 29 . 6 | 405 | 280 | E | = | 8 | C | = | 70.7 | |
|
160 200 250 |
160 200 250 |
75 . 4 75 . 4 75 . 4 |
124 . 8 126 . 7 128 . 3 |
1 . 66 1 . 68 1 . 70 |
32 . 7 36 . 4 41 . 0 |
475 555 655 |
315 355 405 |
F | = | 7 | U M |
= = |
100 M10 深 18 |
|
| 300 | 300 | 75 . 4 | 129 . 4 | 1 . 72 | 45 . 5 | 755 | 455 | |||||||

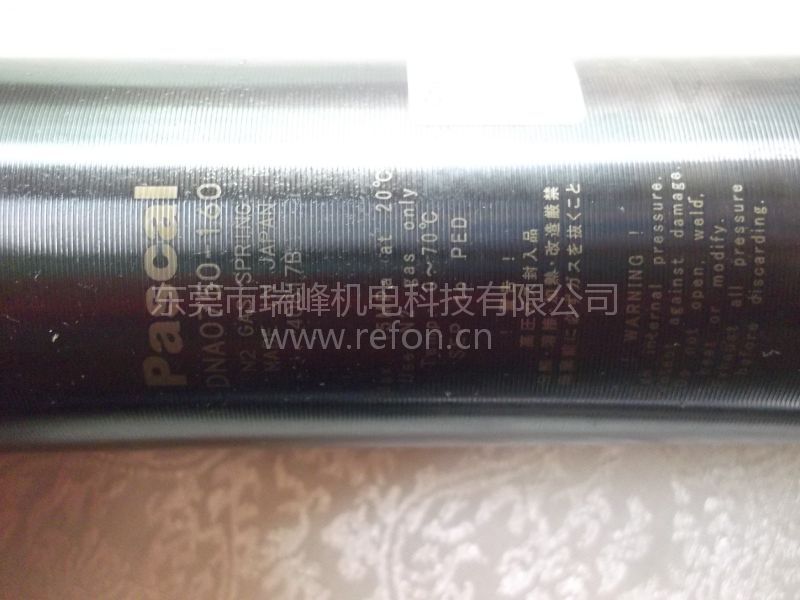

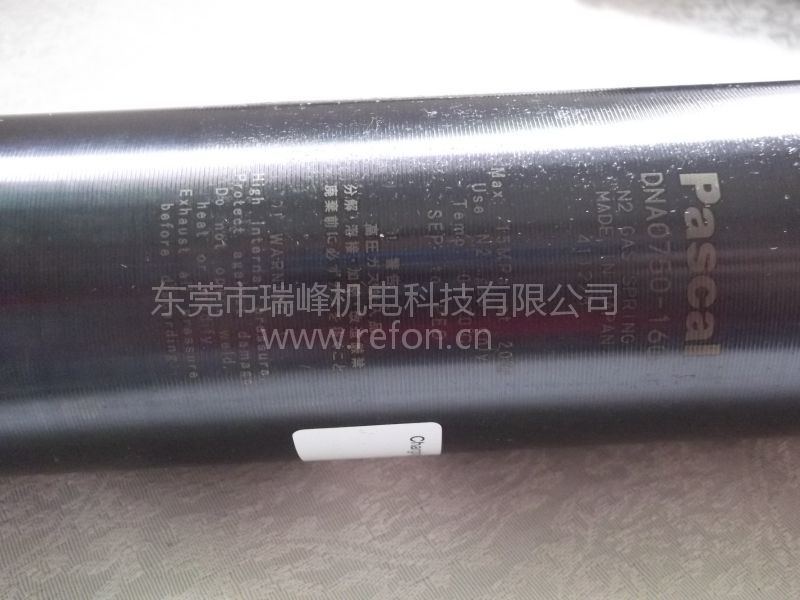

产品实拍图
